Graph in Python

Constructor

The Graph class constructor should take in:

• nvertices: the number of vertices, defaults to 0
• edges: a defaultdict(set) mapping a vertex (start: int) to set of vertices ({int}), indicating there is an edge from start to each vertex in the set.
• directed: a boolean, defaults to False
• weights: a dictionary mapping edges (Vertex, Vertex) to integers (int).

If the number of vertices is not specified, the constructor should call a helper function update_nvertices() to deduce the number of vertices from the adjacency list of edges.

Directed Graphs

When directed is True, no changes are made to the provided edges.

When directed is False, the constructor should call a helper function update_undirected_edges() that ensures every edge is bidirectional. (Be caseful if modifying a list while iterating through the same list.) This is a convience for humans, so we do not have to type both directions of an edge.

String representation

The graph should print out as:

"[Graph, V={number of vertices}, E={edge list}, W={weights}]"

Graph from a File

A graph is represented in a file of this form:

    # Comments start with the pound sign
    SOURCE_VERTEX TARGET_1 TARGET_2 ... # adjacency list rep
    ...
    # WEIGHTS
    START END WEIGHT

The “weights” section is optional. It follows the special comment “# WEIGHTS”.

The Graph class has a @classmethod called from_file.

@classmethod
def from_file(cls, openfile, directed):
    return Graph()

The inputs are:

• cls, the class, which is going to be Graph
• openfile, a TextIO object, which acts just like an open file
• directed, a boolean which defaults to False

Usage:

with open("GraphK33.txt") as f:
    v = Graph.from_file(f, directed=False)

In general, you should remove comments (possibly following the in-class discussion; a regular expression is fine) and skip blank lines.

Example 1: a triangle.

    0 1 2
    1 2

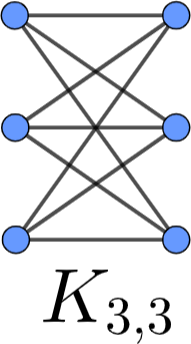

Example 2: the graph known as $K_{3,3}$.

    # K_{3,3}
    11 21 22 23
    12 21 22 23
    13 21 22 23

Advanced Features

• Write a cleanup() function that renumbers the vertices to be consecutive integers beginning with 0.

Graph from a String

A class method `from_str’ converts a (multiline) string into a Graph.

@classmethod
def from_str(cls, txt, directed=False):
    return Graph()

This method is very short because you can use StringIO to treat a string like a file.

Example:

triangle_oneway = Graph.from_str('''
0 1 2
1 2
''', directed=True)
